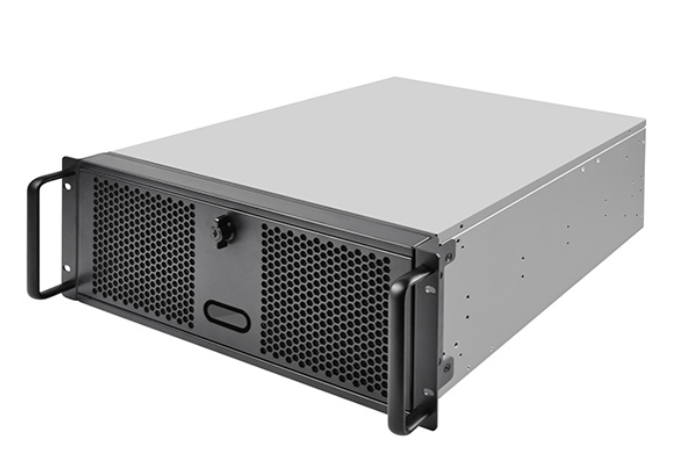

GS484系列

GS484系列

4K UHD
4K UHD
CPU LGA 1151
CPU LGA 1151
Dual Gigabit LAN
Dual Gigabit LAN
HDMI
HDMI
Intel Core
Intel Core
USB 3.0
USB 3.0
Windows
Windows

產品特色

  • Supports 8th/ 9th Generation Intel® CoreTM i7 Processor
  • DDR4 UDIMM 2400MHz, DIMM slot x 4, Up to 64GB
  • 3.5" SATA HDD Hot swappable drive tray x 24
  • USB port : USB 3.0 port x 10
  • Video output : DVI-I x 1, HDMI x 2
  • Redundant 800W Power Supply

規格說明

伺服器應用

規格 4U Rackmount
系統 Intel 8th/9th Generation Core i7
Xeon E-2200/2100, Processor
中央處理器 i7-9700 8 core
記憶體規格 DDR4 2666/2400/2133 MH UDIMM x 4, Up to 128GB
DRAM 8GB x2
固態硬碟 256GB SATA SSD
顯示引擎 N/A
VGA 1 PCIE x16 VGA
PCI匯流卡
  • Compatible with 220mm long expansion card
  • Compatible with 339mm long expansion card (3.5'' hard drive rack removed)
存儲空間
  • 2.5" (Internal) x 1
  • 3.5" (Internal) x 1
熱插拔硬碟 N/A
磁碟陣列 N/A
乙太網路埠 GigE LAN x2
I/O埠
  • DP x 2
  • RJ45 x 2
  • USB3.1 Gen2 x 2(Type C x 1)
  • USB3.1 Gen1 x 4
  • USB2.0 x 2
  • PS/2 x 1
  • Audio Jacks x 5 +SPDIF-Out
前面板
  • Power Button x 1
  • Reset Button x 1
  • Light Indicator
擴充槽
  • PCIe(x16)slots x 4
  • PIC slot x 1
  • 4-way CrossFIreX support
影像輸出
  • HDMI x1
  • DP x1
執行系統 Win10 iot 2019 Enterprise
機箱尺寸 176mm x 430mm x 469mm
重量(不含硬碟) 14Kg
工作溫度 0~35
儲存溫度 -40~60
儲存濕度 5%-95%
輸入電壓 110V~240V
電源供應 ATX 750W
規範 N/A
